vacuum road sweeper street sweeping cleaner truck for saleProduct Parameters

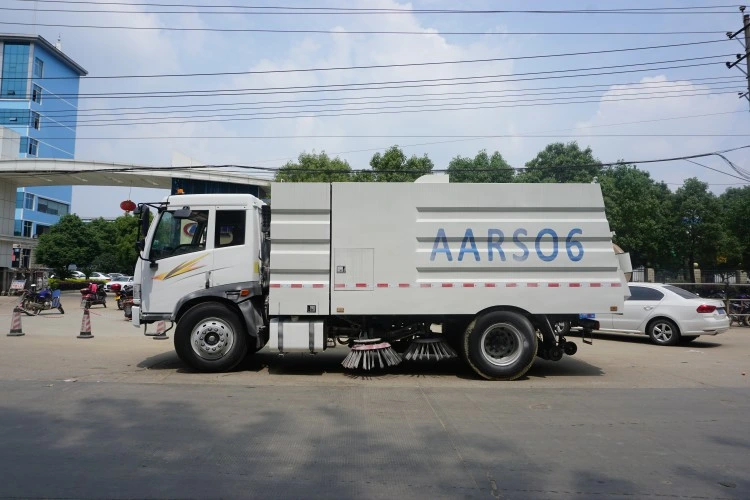

Product Images
Product Details
| Item | Parameter | Unit | |
| Working Performance | Max sweep width | 3.0 | m |
| Sweep speed | 3-20 | km/h | |
| Max sweep capacity | 60000 | m2/h | |
| Max inhalation of granularity | ≥110 | mm | |
| Angle of unloading | ≥45 | . | |
| Volume of water tank | 9000 | L | |
| Volume of garbage tank | 7000 | L | |
| Driving Performance | Max speed | 90 | km/h |
| Max gradeability | 30 | % | |
| Braking distance | ≤10 | m | |
| Min turning diameter | ≤13.6 | m | |
| Fuel Performance | Fuel consumption(Driving) | ≤12 | L/100km |
| Fuel consumption(Sweep working at 8km/h) | 6.5 | L/h | |
| 2.7 | L/10000m2 | ||
| Quality Parameters | Curb weight | 8000 | kg |
| Rated capacity | 12000 | kg | |
| GVW | 15000 | kg | |
| Dimension Parameter | Overall dimensions | 6950*2500*3300 | mm |
| Wheelbase | 4700 | mm | |
| Track front | 1504 | mm | |
| Track rear | 1530 | mm | |
| Front suspension | 1070 | mm | |
| Rear suspension | 1580 | mm | |
| Approach angle | 24 | . | |
| Departure angle | 13 | . | |
| Minimum Ground Clearance | 190 | mm | |
